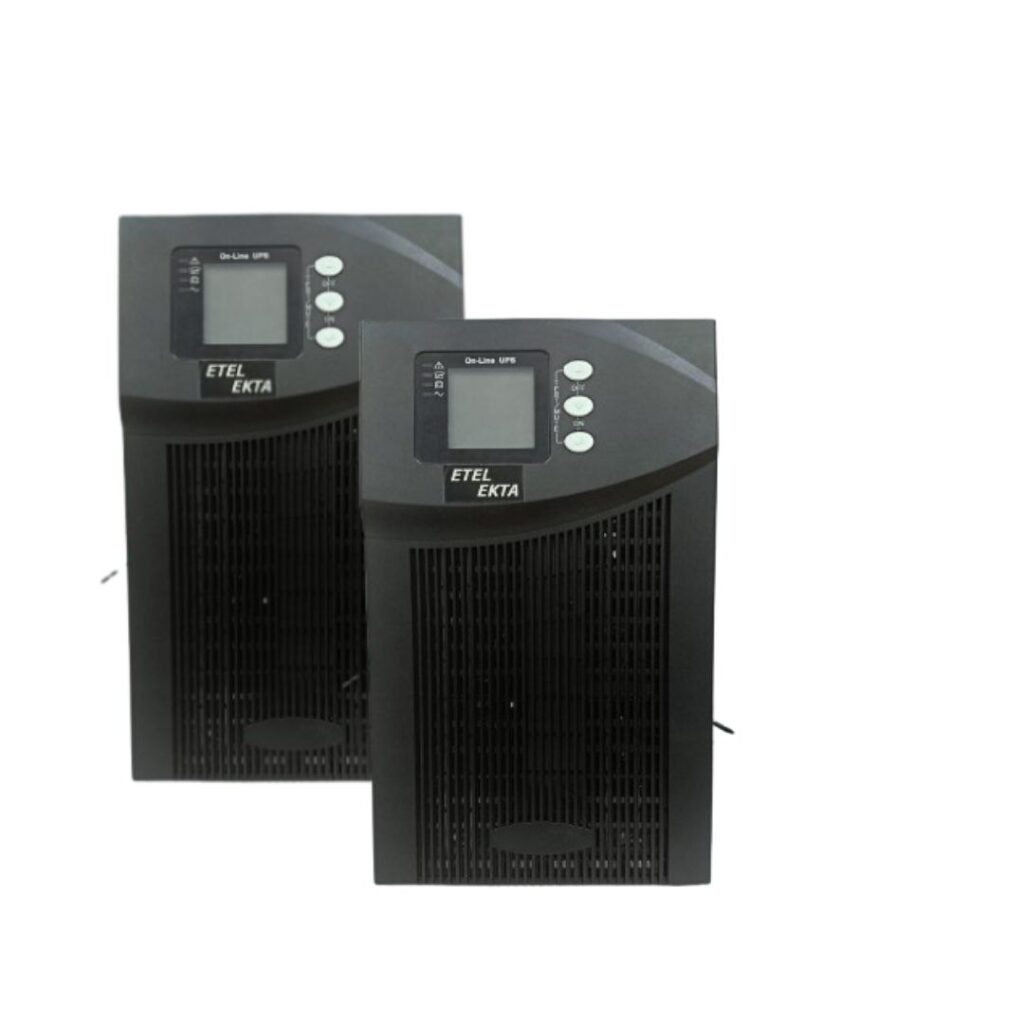

UPS
(1KVA - 200KVA) Single Phase / Three phase
Confirming IEC, BIS, GeM, Railway Standard & SpecificationSALIENT FEATURES
- True online double conversion
- DSP technology guarantees high performance
- High efficiency >92%
- 0.9 Output Power Factor
- Generator compatible
- USB + RS232 multiple communication
- Optional: SNMP/MODBUS
- Active Power Factor Correction in all phases
- Wide Input Voltage Range (110V-300V)
- 3-Stage Extendable charging design for optimized battery performance
- Built-in phase auto adapt function simplifies wire installation
- battery performance Maintenance bypass available
- Emergency Power Off function
- ECO Mode Operation for energy saving
- Programmable power management outlets
- Standalone, Hotstandby & N+X Parallel (optional) operations

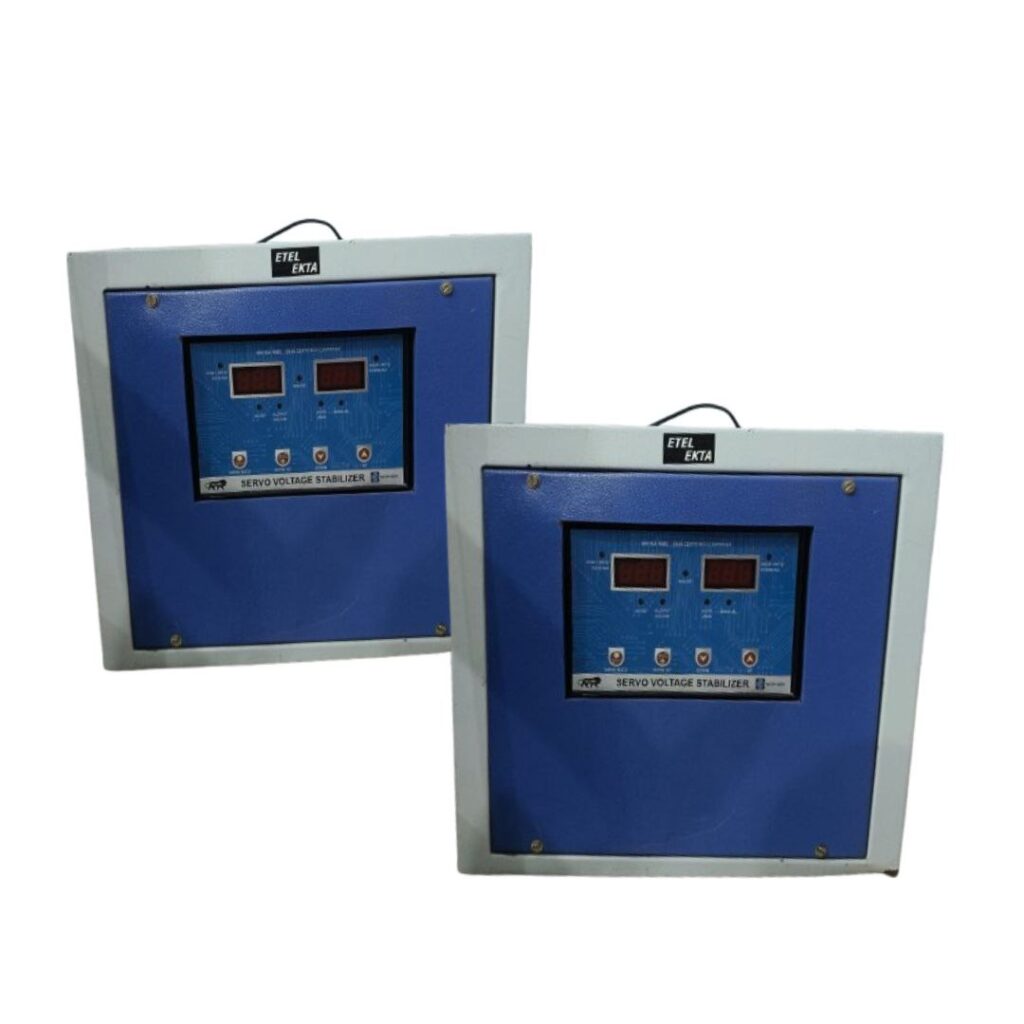

LINE CONDITIONER & CVT /SERVO VOLTAGE REGULATOR
(5KVA-200KVA)
ETEL – EKTA Make Servo Stabilizers & Line Conditioner
REDUCTION IN BREAKDOWN OF ELECTRICAL EQUIPMENTS: Up to 70% depending upon the input voltage variation and working hours of the plant which will result in zero breakdown and better utilization of manpower & equipments.
ENERGY SAVING : 5-25% depending upon the input voltage variation and working hours of the plant.
REDUCTION IN MDI: There will be definite reduction in MDI by 10-15% after the power factor by 10-15% after the installation of the equipment.
IMPROVEMENT IN POWER FACTOR: Improvement in the power factor by 10-15% can be achieved as the output supply will be stable.
EFFICIENCY: Make servo Controlled Voltage Stabilizers are 98.5% efficient compared to other conventional Servo Stabilizer.
LOAD: Make Servo Controlled Voltage Stabilizers are manufactured for unbalanced load of balanced load as per customer requirements.

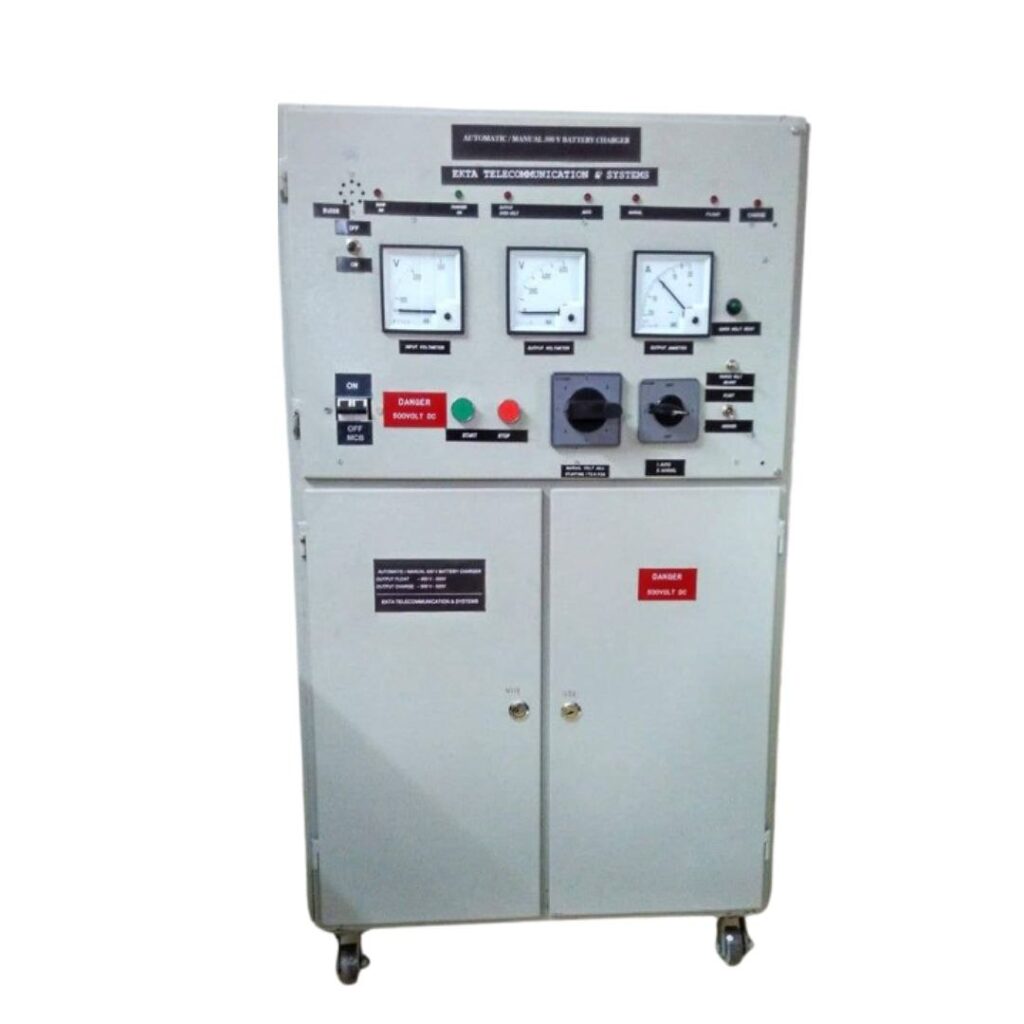

DCPS & BATTERY CHARGER(ALL TYPE)
(6V-1000V)DC,100A
Very High Quality IES Standard Automatic/Manual Battery Charger.
- Transfermer /Transfermerless Solid State operation (IGBT/Mosfect)
- Battery Charger Range 12 V DC -1000 V DC, Up to 100 AMP
- Short Circuit
- Low Voltage
- Over Voltage
- Surge Spike Protection.
- Suitable for all type of Battery Charging
- With 1 year Warranty.
RSDO Defence and Customized Standard.
Very high quality IEC Standard DCPS With
- Battery Backup
- Voltage Range-12V/24V/48V as per requirement
- Very Accurate DC Output
- Constant Battery Charging Voltage
- Short Circuit
- Under Charging
- Over Charging Protection
- With 1 Year Warranty.

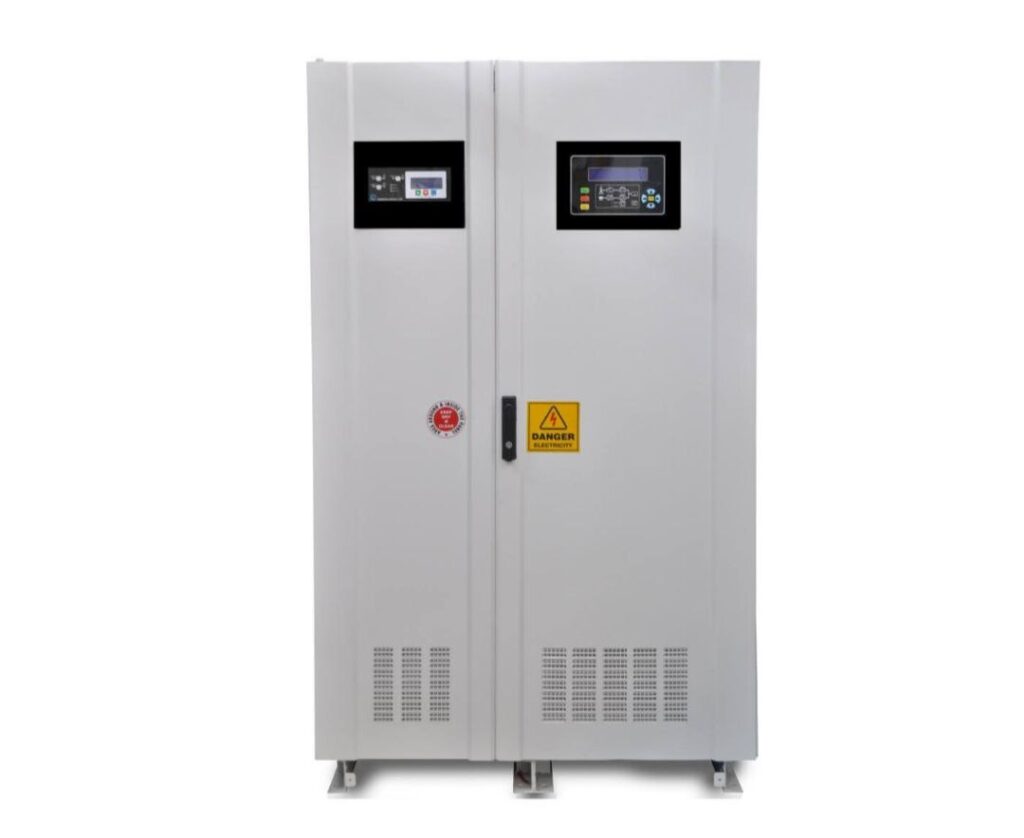

SOLAR ROOF-TOP PCU & INVERTER
(Upto 500KW)
(OFF-GRID, ON-GRID & HYBRID UPTO 1MW)
Benefit with next generation patented technology for your renewable energy needs with our solar hybrid inverter
- Patented Technology.
- Bidirectional Inverter.
- Battery Less Features
- Modular & Fexibility in Design
- Grid Utilization
- In House Engineering Workmanship.
- Every Unit Shipped Fully Tested.
- Utilization of Long Lasting Component.
- Lowest TCO.
- Functionality & Performance
- Design for 10+ Years Lifetime.
- Pan India Parts Available.
- Industrial Leading Warranty Terms.

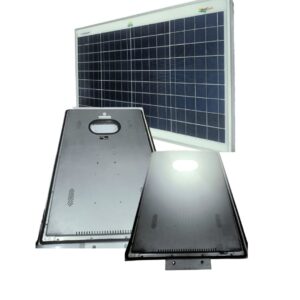

SEMI-INTEGRATED & ALL IN ONE SOLAR STREET LIGHT
(UPTO 500 W)
Solar Led Street Light
| Parameter Description | Parameter |
|---|---|
| Supported PV module | 50-120 Wp PV Module |
| Battery | 12.8 V, 18-54 Ah LiFePO4 battery pack |
| LED chip used | Osram Square |
| Total Luminous Flux | 2200-2800 Lumens |
| LED color temperature | 5500k-6500k |
| Color Rendering Index | >70 |
| Electronic Efficiency | MPPT charge controller efficiency: >95% LED driver efficiency: >90% |
| Charge Controller Methodology | Three stage battery charge monitoring algorithm |
| PIR Sensor (Optional) | 12 meter, 102*92 degree working range |
| LED external optics | 145×90 degree street-light lens |
| IP waterproof protection | IP66 |
| Charge controller methodology | MPPT three stage battery charge monitoring algorithm |
| MPPT software methodology | Perturb and Observe/ Hill-climbing |
| Maximum charging current | 8.0 amp |
| Protections | o Short circuit protection o Battery over charge protection o Battery deep discharge protection o PV reverse voltage polarity protection o Battery reverse voltage polarity protection |
| Solar Panel Dusk to Dawn Operation | NTTV (Night Time Threshold Voltage): 40 Volt DTTV (Day Time Threshold Voltage): 6.0 Volt |
| Battery low, Load disconnect voltage | 11.2 volt |
| Battery full, Load reconnect voltage | 13.0 volt |
| Battery constant voltage set-point | 14.7 volt |
| LED indication | Green on: Battery not charging, PV Low Green on: Battery charging Green flashing: Battery full Red off: Battery not discharged Red on: Battery discharged, load disconnected |
| Ideal Current Consumption | Less than 10 mA |
We are Enagaged in Design and Development of Projects of DRDO ,ISRO in the Field of Electronics Communication , AI and Namo- Technology.
